Tesla Gen 3 Wall Connector

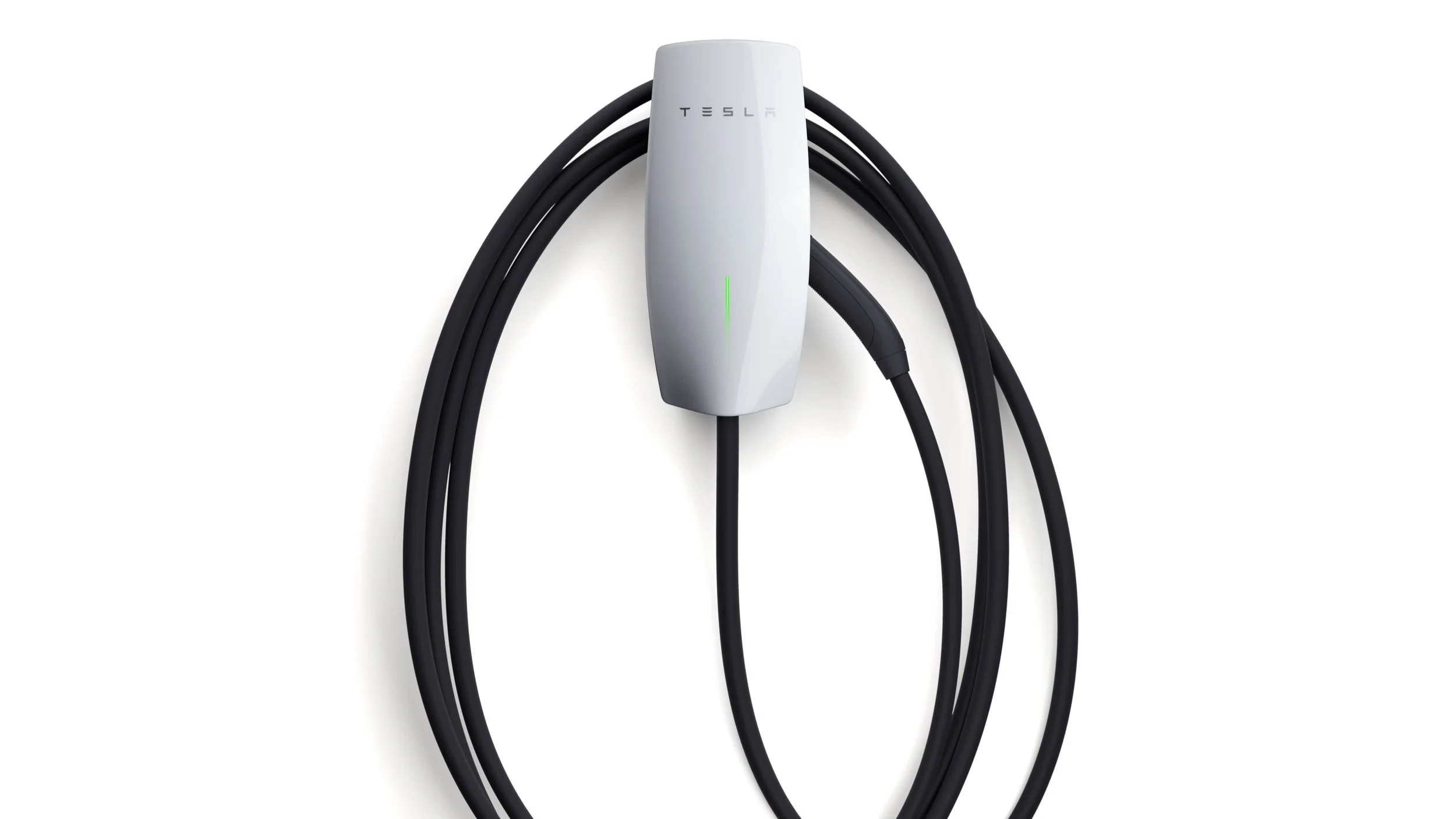

Tesla electric vehicle charging station with a black cable attached, placed on a white background.

The most convenient charging solution

  • Compatible with any Type 2 charge port

  • Schedule, manage and track charging from the Tesla app

  • Automatically adjusts to your home’s current energy usage and maximises charging speed. Dynamic Power Meter is sold separately.

  • Wi-Fi connectivity for over-the-air firmware updates

  • Up to 71 km of range per hour

  • Up to 22 kW with three-phase charging grids

  • Easy installation with single or three-phase grids

  • Tesla charge port opening from connector

  • 7.3 m cable length

  • 4 years warranty

  • Available in white

Install only from £599
Supplied & installed from £1,049

Enquire
Product Data Sheet
Tesla electric vehicle charger mounted on an exterior wall beside a window.
Red electric car connected to charging station outside building with large windows at sunset.
Tesla electric vehicle charging station with a white charging unit and black charging cables mounted on a white background.

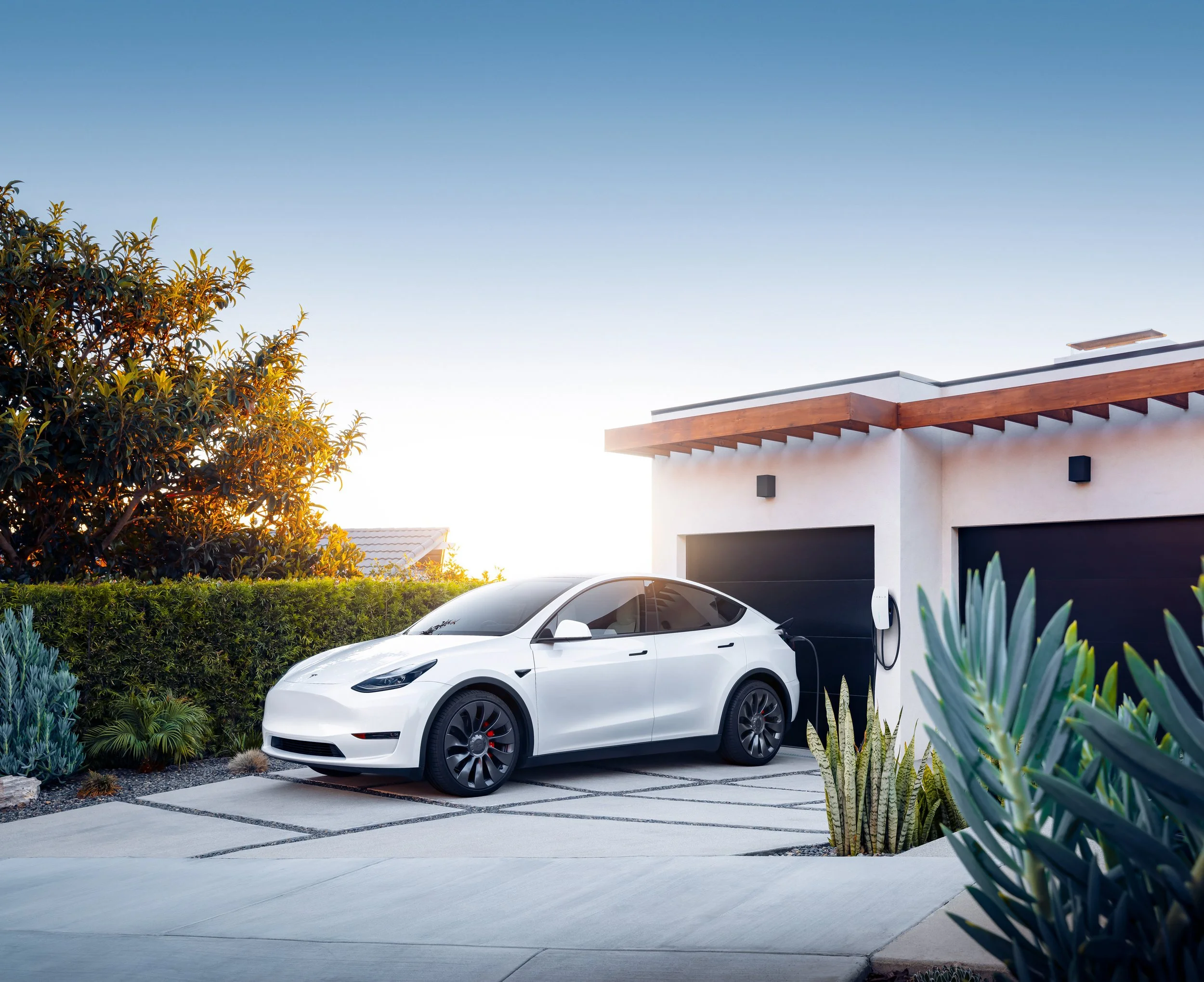

A white Tesla electric car plugged into a charger in a modern driveway with desert plants and a house with a flat roof.
Person holding an electric vehicle charging connector near a red electric car, with charging station and monitors in the background.
Electric vehicle charging station outside a modern house with a black garage door and brown wooden fence, along with greenery including bushes and succulents.
Screenshots of Tesla's mobile app showing wall connector setup, vehicle charging schedule, home charging status, and energy usage details.

 FAQs

  • The Tesla Wall Connector has evolved significantly from Gen 2 to Gen 3.

    The most noticeable changes include a sleek, modern design with a glass front and a white colour scheme for Gen 3, compared to the more traditional black or silver plastic of Gen 2.

    Technologically, Gen 3 supports up to 16 wireless connections and introduces Wi-Fi connectivity, allowing for remote monitoring and firmware updates. Although Gen 2 offers higher power capacity (80 amps vs. 48 amps for Gen 3), the current electric vehicles do not require more than 48 amps, making Gen 3 adequately powerful while reducing heat generation and potential overheating issues seen in Gen 2.

    Additionally, Gen 3 features a thinner, more manageable 18-foot cable compared to the 24-foot cable of Gen 2. Despite these enhancements, both generations are similarly priced, making Gen 3 a more feature-rich and efficient option at no additional cost.

  • Gen 3 Wall Connector is compatible with both Single and Three Phase power.

  • In a single phase home, the Wall Connector will use the highest capacity charging speed of 7.2kW, which can provide your EV with up to 40km of range per hour.

    Three-phase homes have three connections to the grid, meaning a charging speed of 22kW can be reached (depends on your car).

  • Wall Connector is compatible with most electric vehicles including Tesla vehicles and other electric vehicles.

    Make sure the Wall Connector you are purchasing has a plug that matches the charging inlet on your electric vehicle.
